Ashford

In Stock

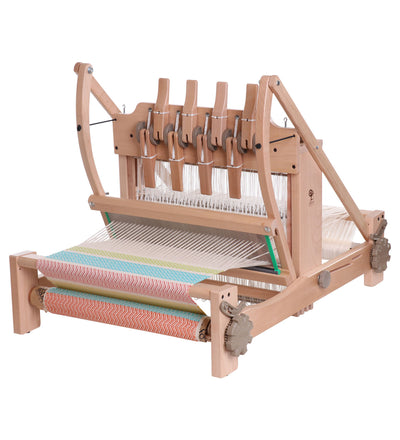

Eight Shaft Table Loom

Add to Wishlist

Portable multishaft weaving *NOW WITH SHUTTLE RACE INCLUDED

- 3 widths
- overhead beater for best weaving shed

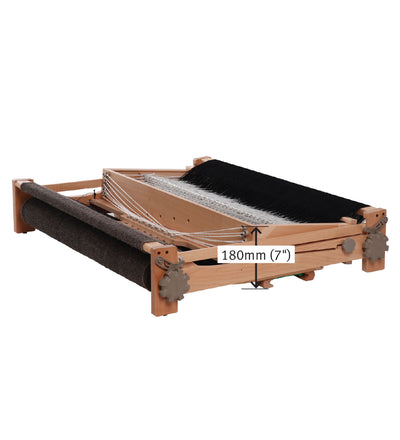

- castle folds flat for easy transport
- lacquered
- requires assembly

Popular because they are portable, easy to use and so versatile, the Ashford table looms are in demand with both beginner and experienced weavers.
Choose from 3 weaving widths. The eight shaft looms fold flat, even with your weaving in place, making them ideal for taking to workshops or guild meetings. The overhead beater, with automatic bounce back, gives a wonderful shed and even beating. Levers are within easy reach for comfortable weaving.

Each shaft can be lifted simply and quickly and is independent, enabling a wide variety of patterns to be woven. The solid Silver Beech hardwood is lacquered for long-lasting good looks. Non-slip rubber feet give extra stability. Swedish stainless steel reed and lightweight Texsolv heddles are included. Plus there are a wide range of options and accessories available.

specifications

Stainless steel reed 10dpi (40/10cm)
Weight from 9kg (20lbs)
Available in three weaving widths 40, 60, 80cm wide (16, 24, 32ins)

Included accessories:
Swedish Texsolv heddles
40cm (16ins) - 320 heddles
60cm (24ins) - 480 heddles
80cm (32ins) - 640 heddles

Warping tools - Cross and warp sticks, reed, heddle hooks, two shuttles and Learn to weave on the table loom booklet.

Assembly Instructions can be found here

Reed Substitution Chart

ES410 - 40cm (16")
ES610 - 60cm (24")

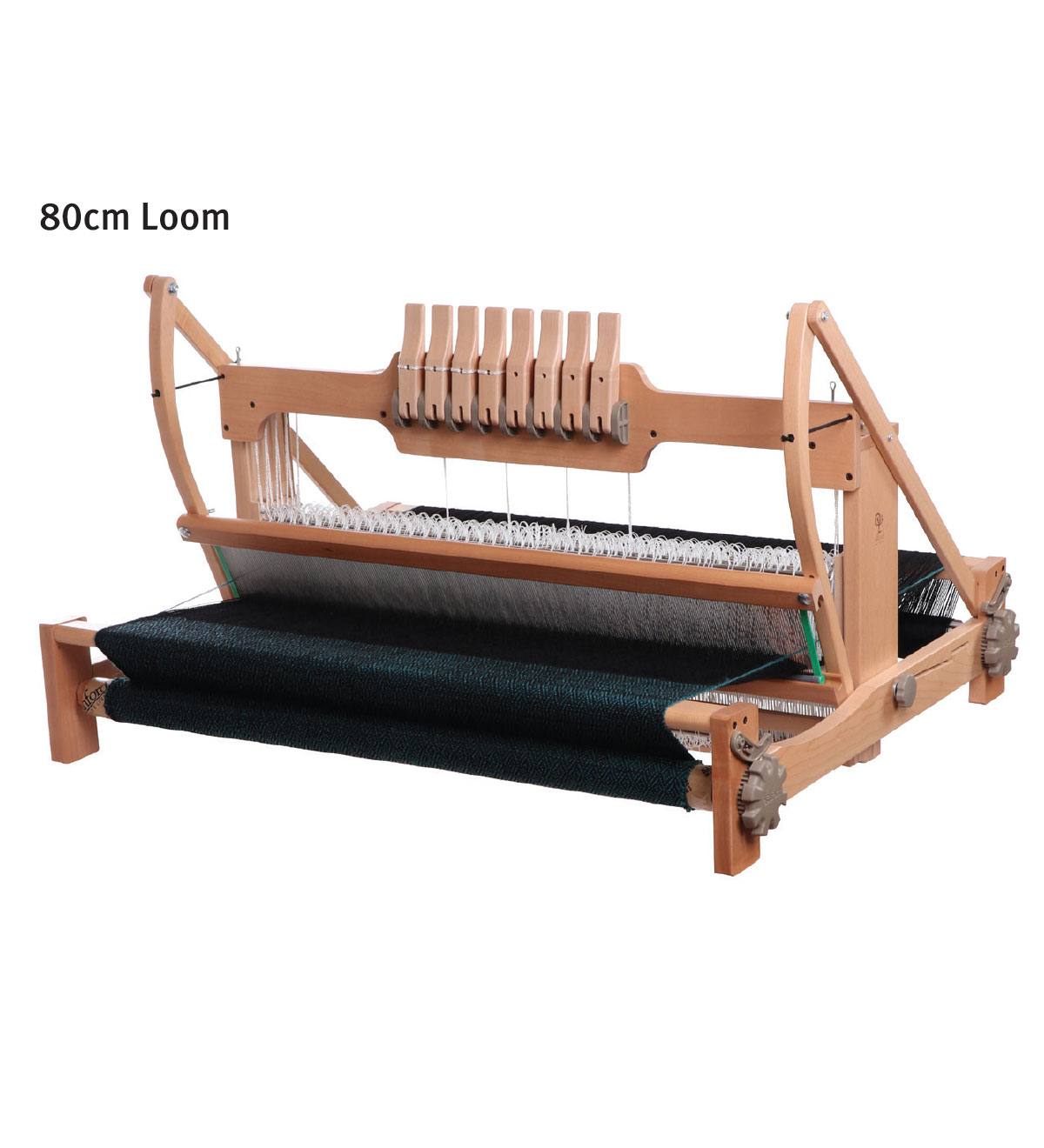

ES800 - 80cm (32")
ES410 - 8.5kg (18lb)
ES610 - 10.5kg (23lb)
ES800 - 12.3kg (27lb)
required
cross and warp sticks, reed, heddle hooks,
2 x lacquered shuttles
- ES410 - 36cm (14")
- ES610 - 56cm (22")
- ES800 - 56cm (22") and 76cm (30"),
swedish texsolv heddles
- ES410 - 320 heddles
- ES610 - 480 heddles
- ES800 - 640 heddles,
learn to weave on the table loom booklet
lacquered

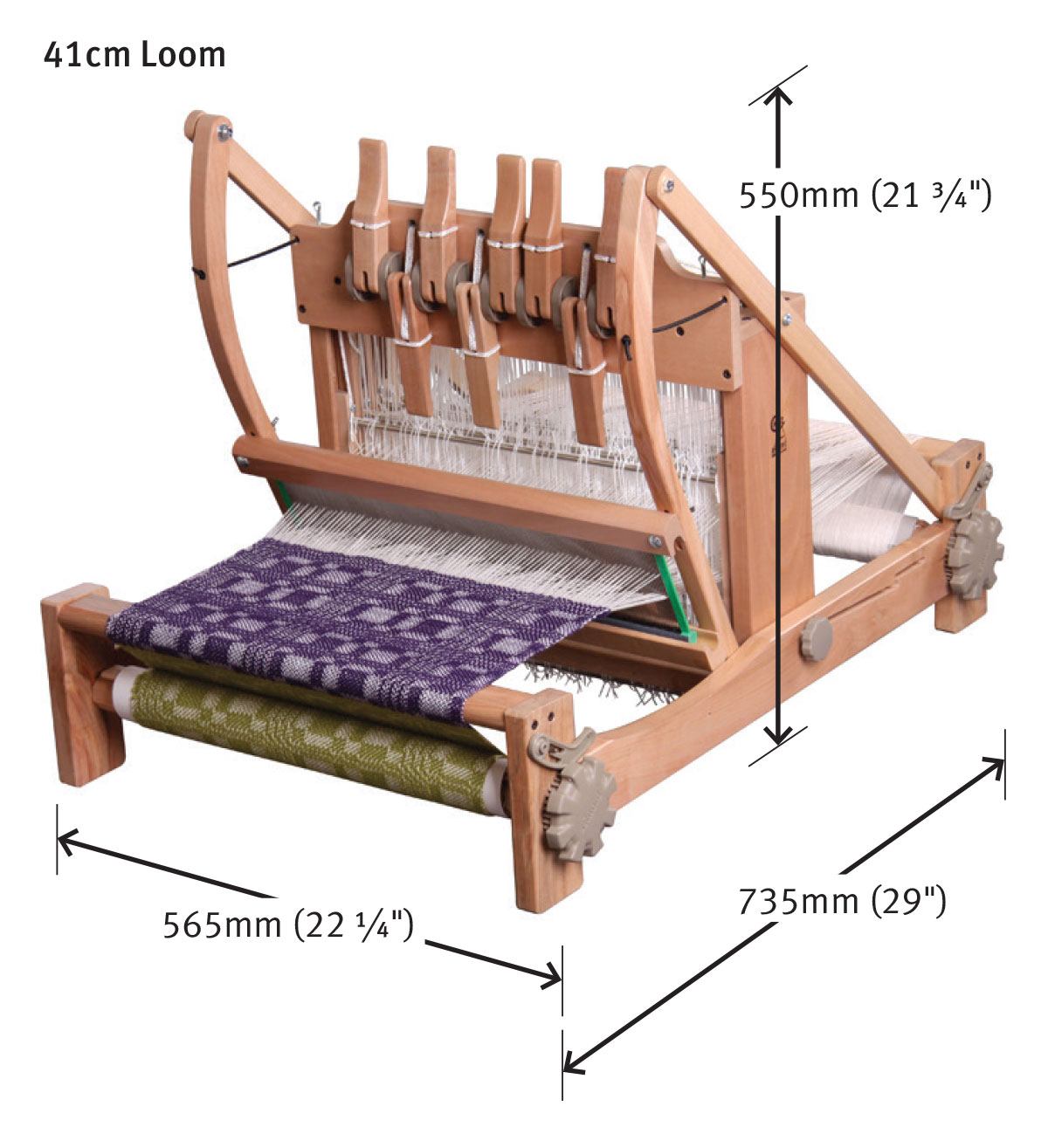

ES410 - 56cm (22”) w x 56cm (22”) h x 74cm (29”) d

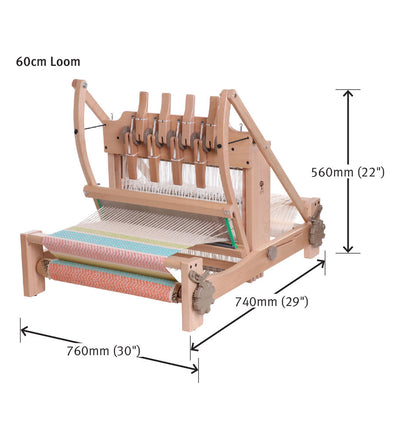

ES610 - 76cm (30”) w x 56cm (22”) h x 74cm (29”) d

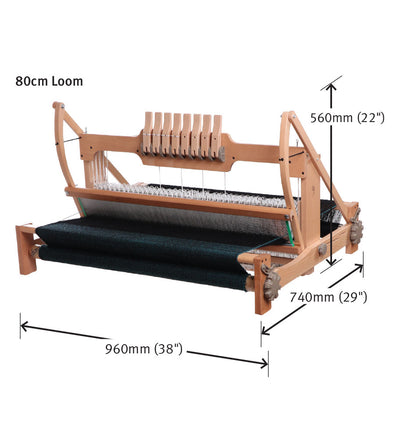

ES800 - 96cm (38”) w x 56cm (22”) h x 74cm (29”) d
ES410 - 56cm (22”) w x 18cm (7”) h x 74cm (29”) d
ES610 - 76cm (30”) w x 18cm (7”) h x 74cm (29”) d
ES800 - 96cm (38”) w x 18cm (7”) h x 74cm (29”) d

QUESTIONS & ANSWERS

Ask a Question
  • Hi, can this be warped without a warping board? Thanks

    Hello and thank you for your question.

    It is always possible to warp without a board. It is slightly more tricky but that's what makes it fun! I have seen people using chairs, tables etc. I have even seen a three-tier magazine stand used which worked a treat.

    Wapring Peg and Clamps are also a cheap and space saving solution.

    I hope this helps answer your question.  Should you have any further questions, please do not hesitate to contact me again.

    Kind regards
    Cheryl

  • what are the rage of products i can make with the 80cm eight shaft loom

    Thank you for your question.
    There is a whole world of products you can produce on an Eight Shaft Loom.
    May I suggest you check out the wonderful Book called the Ashford Book of Projects for the Eight Shaft Loom: CLICK HERE available for purchase for just $13.50
    It is beautifully illustrated, 40 pages and chapters include:
    1. Introduction
    2. Traditional Weave for Modern use
    3. Scarves and Shawls
    4. Summer & Winter
    5. Backed Weaves for clothing
    6. Finishing
